S4A5S

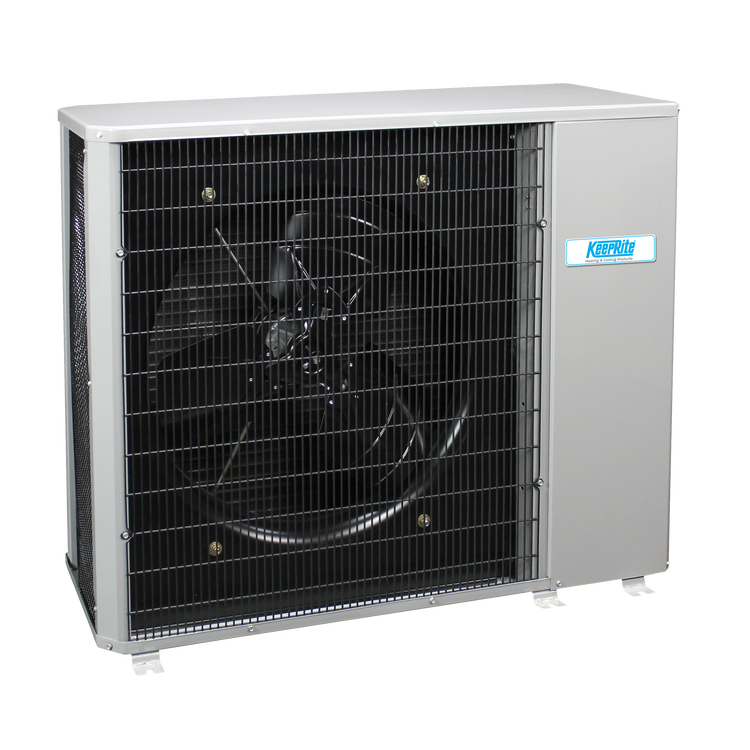

Performance Compact Central Air Conditioner

Keep the peace with quiet performance as low as 65 decibels with this compact central air conditioner that's great for multi-family housing. Its stackable design has an efficient "pass through" airflow design. Built to last, it features a weather-resistant cabinet and a tight wire protective guard.

Tooltip Image
Tooltip Image Alt
Icon of a question mark
Tooltip Text
Quiet Operation
Tooltip Image
Tooltip Image Alt
Icon of a question mark
Tooltip Text
Timely registration required for 10-year parts limited warranty. Limited warranty period is 5 years if not registered within 90 days of installation. Jurisdictions where warranty benefits cannot be conditioned on registration will receive the registered limited warranty periods. Please see warranty certificate for further details and restrictions.
Button
Find A Dealer
Button Aria Label
Find A Dealer
Features & Benefits (open)
  • Quiet performance (as low as 65 decibels)*
  • Single-stage compressor operation
  • Durably built to withstand bad weather and debris
  • Designed for corrosion resistance and lasting performance
  • 10-Year Parts Limited Warranty+
Specifications
  • Specially designed for narrow lot or multi-family applications
  • Efficient, single-stage scroll compressor
  • Single-speed fan motor
  • System protecting filter drier
  • High-gloss, baked-on powder coat finish over galvanized steel
  • Compatible with most cooling thermostats
  • Non-ozone depleting R-410A refrigerant
  • Cooling capacity: 1.5–5 tons
Product Details (open)
Reference: table
Documents
Reference: document-listing
Efficiency Rating Efficiency Rating
Up to 16 SEER2 cooling / Up to 13 EER2 cooling

SEER

SEER stands for Seasonal Energy Efficiency Ratio and applies to cooling efficiency for central air conditioners and heat pumps. The higher the SEER, the greater the energy economy.

EER

The Energy Efficiency Ratio (EER) that calculates the energy the unit uses to function. It can be found by dividing a unit’s BTU output by its wattage, and the high EER rating means a more efficient air conditioner, so the higher the better.

Sound level Sound level
As low as 65 decibels

Sound

Unit used to measure sound or power level of an electrical signal by comparing it with a given level on a logarithmic scale.

Parts Warranty
10-Year Parts Limited Warranty±
Fan Motor
Single-speed fan motor
Compressor
Single-stage compressor operation
Cooling capacity
1.5–5 tons
Refrigerant Refrigerant
Non-ozone depleting R-410A
No Hassle Replacement™ Limited Warranty
N/A

No Hassle Warranty

If compressor, coil or heat exchanger fails due to defect during the applicable No Hassle Replacement limited warranty time period, a one-time replacement with a comparable unit will be provided.

Categories
air-conditioners

*Quietest size within each model group during most common cooling operating condition.

+ 10-Year Parts Limited Warranty: Timely registration required for 10-year parts limited warranty. Limited warranty period is 5 years if not registered within 90 days of installation. Jurisdictions where warranty benefits cannot be conditioned on registration will receive the registered limited warranty periods. Please see warranty certificate for further details and restrictions.
