DLCMHB

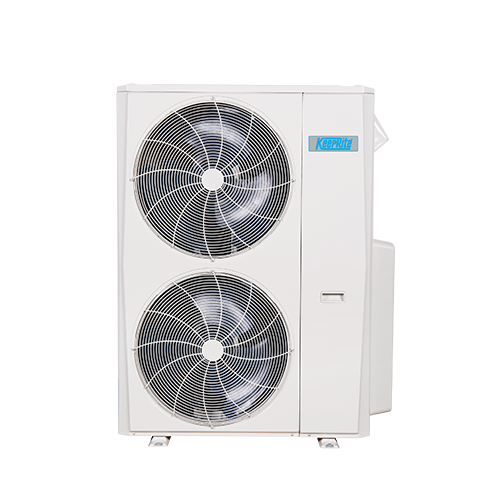

QuietComfort® Multi-Zone Heat Pump

Bring comfort to multiple spaces with the new multi-zone heat pump. This energy-efficient unit provides ratings of up to 22.4 SEER2 and up to 12.5 EER2 with the flexibility to be connected from two to five indoor units. Equipped with Condenser High-temperature Protection, Refrigerant Leakage Detection and available in sizes 18 to 48, there is certainly a size to meet your cooling and heating needs.

  • Inverter Compressor
  • Up to 22.4 SEER2 cooling efficiency
  • Up to 12.5 EER2 heating efficiency
  • Available in 208/230V
  • Sizes: 18 / 27 / 36 / 48 /
  • Built-in basepan heater
  • Condenser high-temperature protection
  • Refrigerant leakage detection
  • Quiet outdoor operation, as low as 61 dB(A)1
  • Anti-corrosive fin coating
  • 10-Year Parts Limited Warranty2
  • Up to 22.4 SEER2
  • Up to 12.5 EER2
  • Up to 10 HSPF2
  • Outdoor sound: as low as 61 decibels1
  • Cooling operating range -22°~122° F (-30°~50° C)
  • Heating operating range -22°~75° F (-30°~24° C)Total piping length 197~328 ft.
  • Vertical Lift/Drop piping Length 49~65 ft
  • Inverter Compressor
  • 1.75 – 4.0 Ton 2, 2.5, 3 & 4 Ton
  • 208/230V
  • Heavy-gauge, galvanized steel construction
  • Primed and coated with a 100% coverage, baked-enamel finish in white
  • Up to 22.4 SEER2
  • Up to 12.5 EER2
  • Up to 10 HSPF2
Cooling Efficiency Cooling Efficiency help_outline
Up to 22.4 SEER2
Heating Efficiency Heating Efficiency help_outline
Up to 10 HSPF2

1Quietest size within each model group during low fan-speed operation

2If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.
